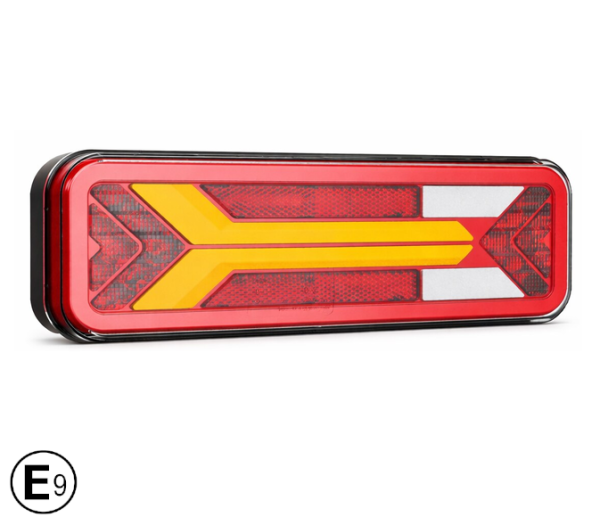

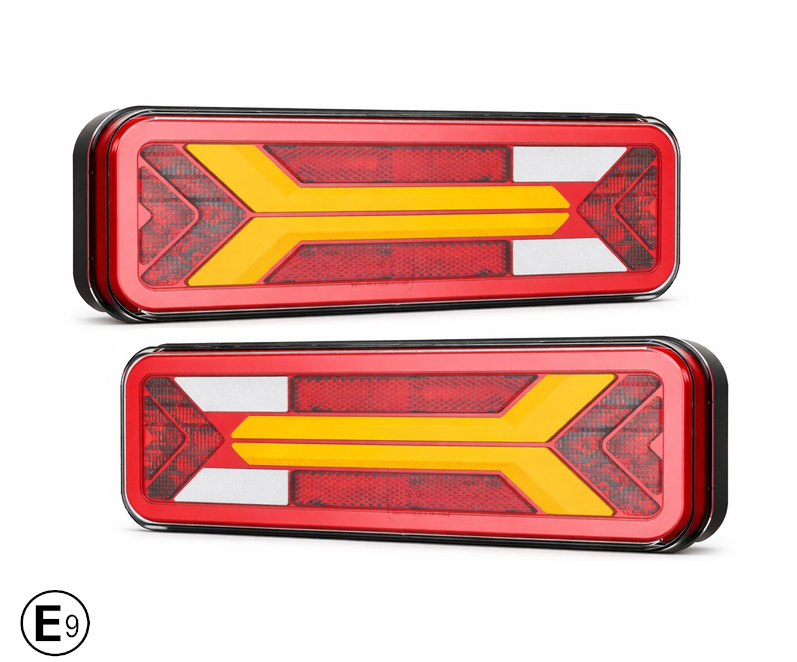

2 x LED Tail Rear Trailer Truck Lorry Dynamic Light 12v 24v

Product Description:

The set of 2 LED rear lights is designed for vehicles with a 12–24V DC electrical system and combines the main rear lighting and signaling functions in a single housing.

Each rear light is equipped with 98 type 2835 LEDs, providing high brightness and excellent visibility during both day and night.

Suitable for trailers, semi-trailers, caravans, vans, trucks, and other compatible vehicles.

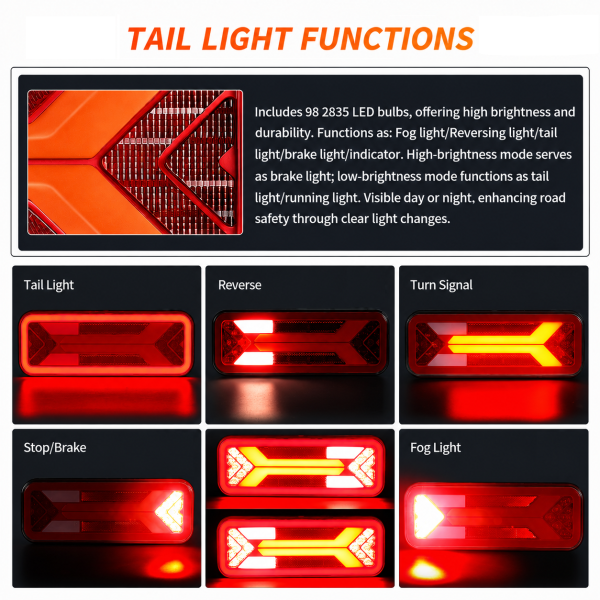

5 Functions

• Tail / Position Light
• Stop / Brake Light
• Dynamic Turn Signal
• Reverse Light
• Rear Fog Light

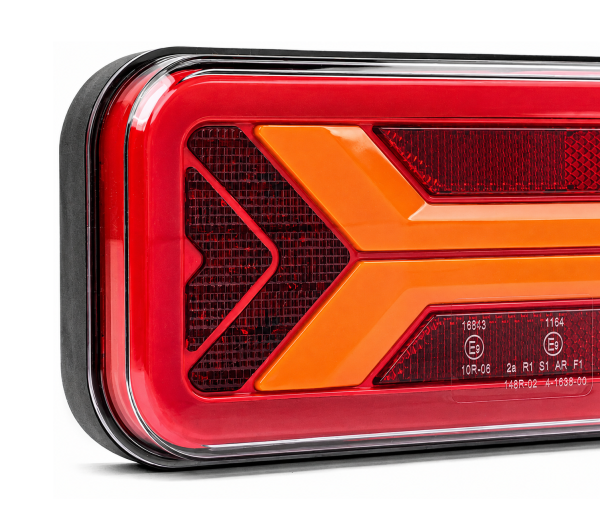

E-Mark E9

The rear lights feature an E-Mark E9 marking, displayed on the front of the product.

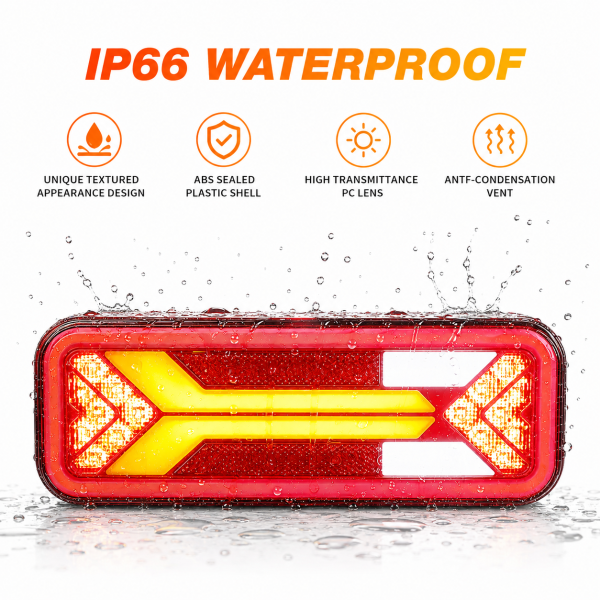

IP66 Protection

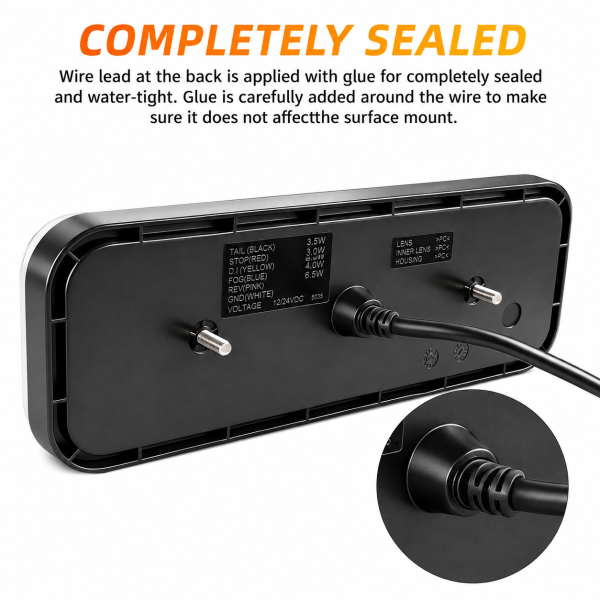

The IP66 protection rating provides resistance against dust and powerful water jets. The cable outlet at the rear is additionally sealed, while the housing features ventilation designed to help prevent condensation.

Durable Construction

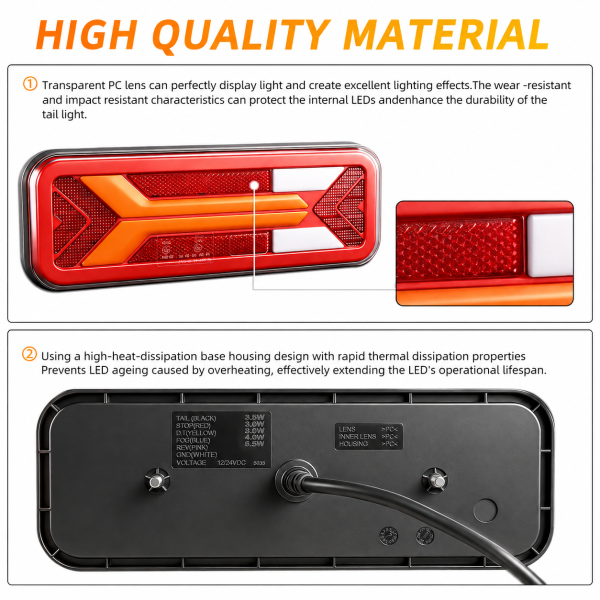

The PC lens provides high light transmission and protects the LED components. The rear housing is made of ABS and is designed for efficient heat dissipation.

Technical Specifications

• Set: 2 LED rear lights
• Voltage: 12–36V DC
• LEDs: 98 × 2835 LEDs per light
• Certification marking: E-Mark E9
• Protection rating: IP66

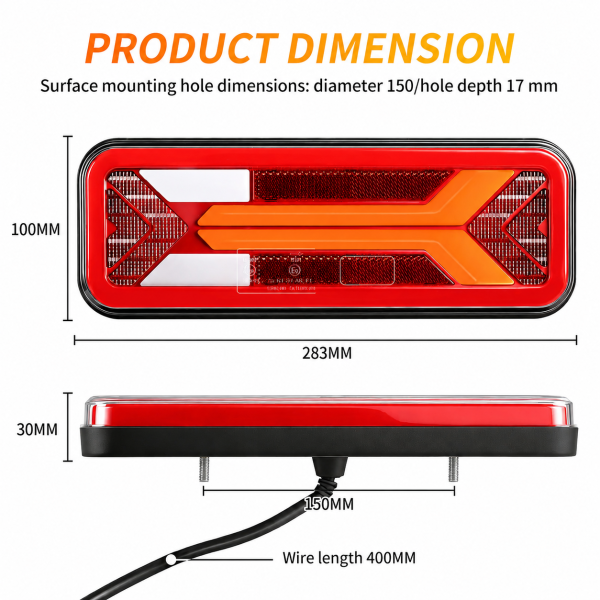

• Dimensions of each light: 283 × 100 × 30 mm
• Distance between mounting screws: 150 mm
• Depth in the cable area: 17 mm
• Cable length: 400 mm
• Lens material: PC
• Housing material: ABS
• Installation: Screw mounting

Wiring

• Black: Tail / Position Light
• Red: Stop / Brake Light
• Yellow: Turn Signal
• Blue: Rear Fog Light
• Pink: Reverse Light
• White: Ground / GND
