LED combined halogen / work light with white DRL and R65 warning light, for flush mounting, 4 functions, IP65/67K, 12–24V
LED combined halogen / work light with white DRL and R65 warning light, for flush mounting, 4 functions, IP65/67K, 12–24V
Suitable for cars, cars, SUVs, tractors, ATVs, agricultural machinery, heavy machinery, excavators, bulldozers and many others.
Features:
Work Light
White DRL/Position Light
R65 Warning Light with 4 Flashing Modes
Mode Switch
Electrical Specifications:
Lamp Type: LED
Supply Voltage: 10–30V DC
Power:
Work Light: 17W
R65 Warning Light: 6W
Actual Luminous Flux (Work Light): 800 lm
Maximum Luminous Flux: 1100 lm
LED Chips:
Work Light: HFL3 (2 pieces)
Warning Light: SMD (6 pieces)
Protection and Durability:
Ingress Protection Rating: IP67 and IP69K
Housing: Aluminum
Lens: Polycarbonate
Mounting Bracket: Stainless Steel with Black Coating
Approvals and Standards:
EMC: ECE R10
ECE Homologation: R65
Wire Connection:
Black: Ground (Negative)
Red: Work Light
Yellow: Warning Light
Blue: Mode Switch

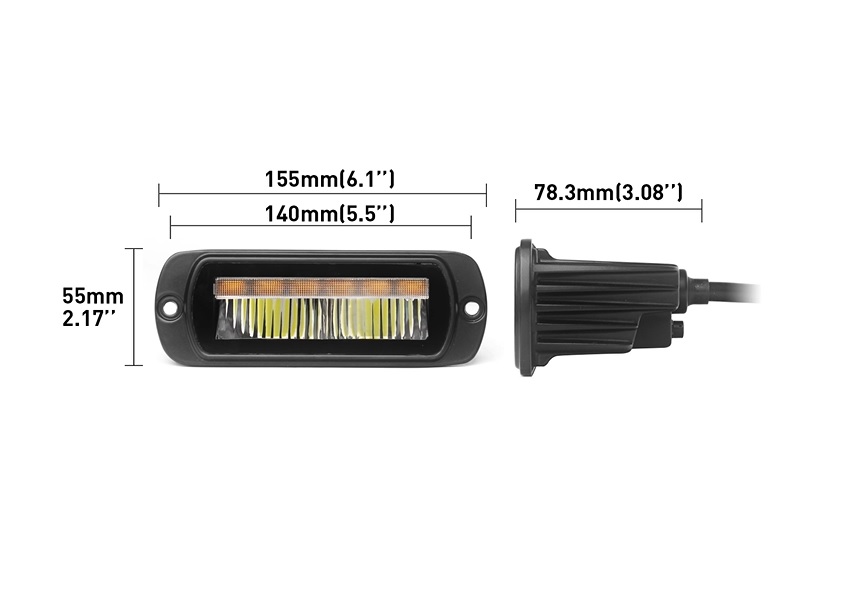

Dimensions:
Outer length: 155 mm
Hole length (recessed): 140 mm
Height: 55 mm
Depth: 78.3 mm
Advantages:
Recessed mounting for a clean and aesthetic look
Four functions in one lamp
High resistance to water, dust and vibrations
Long LED service life
Suitable for professional use
Applications:
Trucks, SUVs, light commercial vehicles, tractors, excavators, front loaders, agricultural machinery, construction equipment, and special vehicles.
